A Look At The Process Cycle Of Plastic Molding

by Mercert
Cycle Of Modern Plastic Molding

Injection molding is known for producing scrap as well as traditionally low scrap elements. This is usually relative to machining, which can easily cut away a significant percentage of the initial plastic block as well as a sheet. With that said, for different professionals in the manufacturing sector, it’s essential to understand the cycles involved in the manufacture of products using the method of plastic molding. Here are the primary cycles of an injection mould.

  • Clamping Is The First Process

Clamping is the initial step of the plastic molding process. Before injecting mold into the material, the elements must be closed. Thereafter, they are then sealed using a clamping unit. At this point, you may now append the injection to your mould. The raw material will then be injected as the unit used in clamping is pushed into the halves.

  • The Process Of Injection

 As its scientific name suggests, in this phase, plastic pallets will be inserted into an injection moulding machine using a hopper. The elements, which are raw materials, are then moved towards the injection unit of the device. As such, the heat found in the barrel will begin to break down the pallets. Also, the massive volume of the material will be injected into the device in this stage.

  • Cooling Takes Place

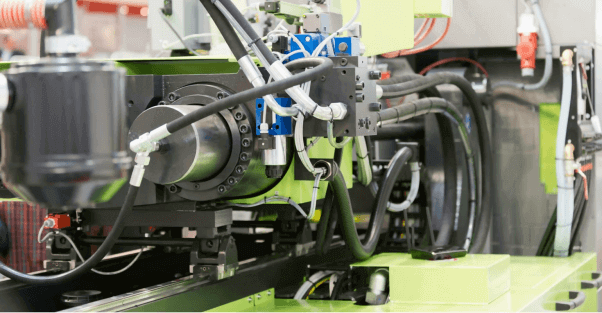

Cycle Of Modern Plastic Molding

 In this phase, plastic pallets have already been inserted into the device. Therefore, cooling is facilitated using a process that involves the plastic being added to the machine. Thereafter, the mould is exposed to a low temperature that will facilitate cooling. When the plastic is being exposed to cold temperatures to enhance cooling, then it begins to harden. Of course, some of the parts of the raw material will shrink significantly.

  • A Look At The Ejection Process

The ejection process entails removing the material from the machine. In this phase, you’ll use an ejection system. As such, the mould will open before a large part of it is forced out of the machine. Bu using this force, some of the parts of the materials will shrink, thereby sticking to the mould. Thereafter, the mould may be shut once more. The process is repetitive.

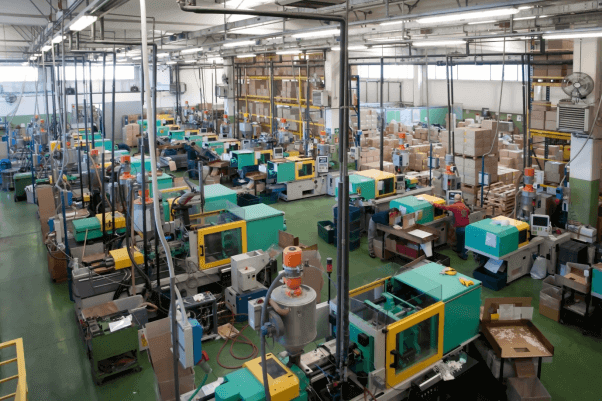

Cycle Of Modern Plastic Molding
  • Disintegrating Mold Design Mold

Design refers to the quality of the product that has been created after passing the raw material through the whole phase of mold injection and ejection. As such, the mold needs to withstand the pressure that has been used in pressing the materials. In the long run, the polymer needs to flow smoothly as well.


Plastic molding is a complicated process. You need to understand the cycles involved in ensuring that you achieve excellent results. Besides, you also need to be highly trained to run the machine appropriately. That way, you can have high-quality products. With the phases cited above, you will be in a position to grasp all details involved in the process.
